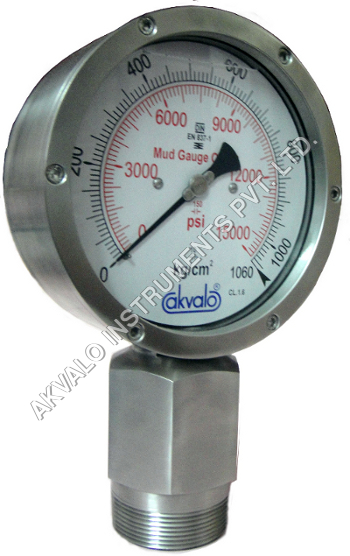

Mud Gauges

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Being a reputed organization, we have been able to manufacture and export an extensive range of Mud Gauges. To win the trust of clients, these gauges are manufactured using high quality stainless steel that is procured from authentic vendors of the market. Our offered gauges are made available in conventional indicating pointer type, dial moving type and various specifications as per the needs of clients. Before the final dispatch, Mud Gauges are thoroughly checked on various parameters to ensure flawless finish.

Features:

Precise measurement
Easy installation
Longer functional life
Dimensional accuracy

Other information:

Nominal Size (mm)		100, 150
Scale Range		0..10 to 1000 kg/cm²
Accuracy in FSD		1%
Thread Connection		3/4", 1", 11/2",2" BSP & NPT Screwed or as per requirement
Mounting of Gauge		Direct Bottom
Case and Bezel		SS 304 or as per requirement
Pressure Elements		Bourdon Tube
Diaphragm		YES
Wetted Parts		SS 316 and other material on request
Application		For High viscosity Media, Pulp, Grease, Mud, media in paste form or their propensity to crystallize
Optional		Liquid Filled
