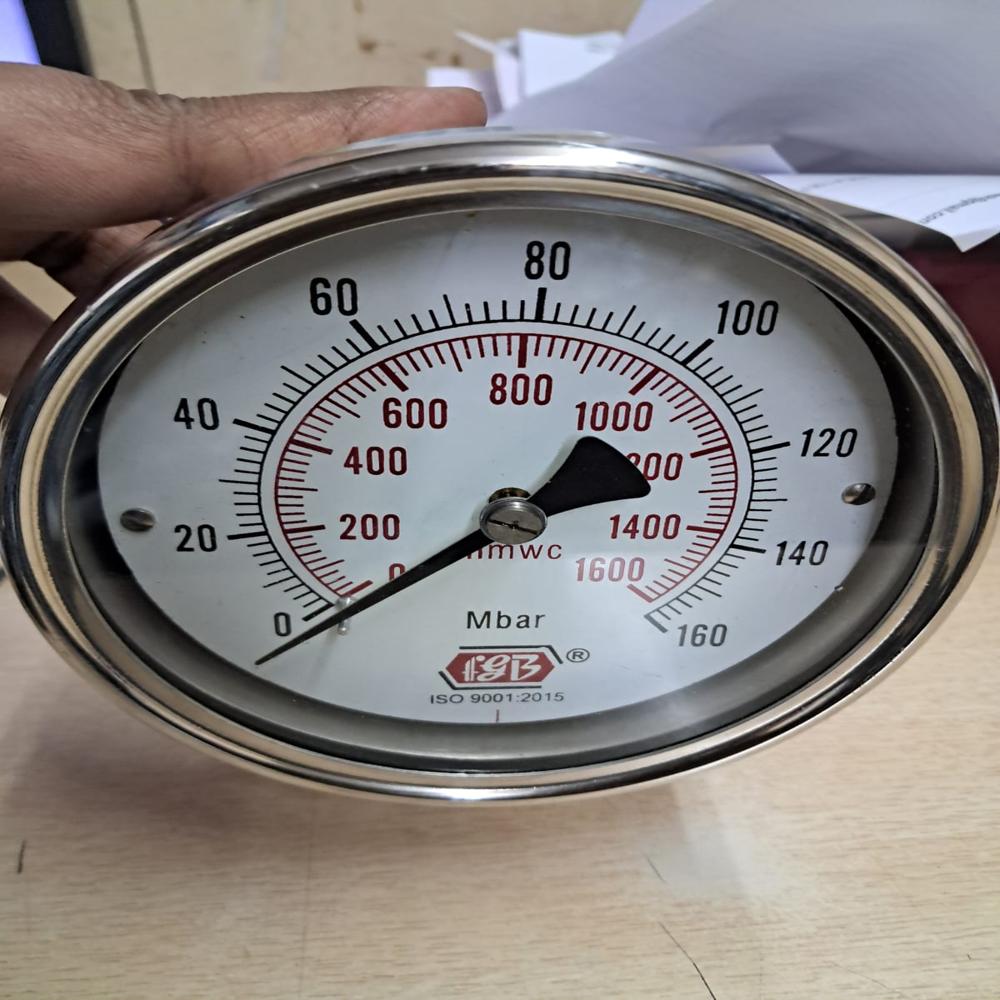

4''DIAL0-1600 MMWC 1/2 BSP BOTTOM SS CASING INT BRASS Inbuilt Capsule Diaphragm

Name: 4''DIAL0-1600 MMWC 1/2 BSP BOTTOM SS CASING INT BRASS Inbuilt Capsule Diaphragm
Brand: FGB MANUFACTURING CO.
Price: 1250.0 INR
Availability: InStock

Price 1250.0 INR/ Number

Get a Price/Quote

4''DIAL0-1600 MMWC 1/2 BSP BOTTOM SS CASING INT BRASS Inbuilt Capsule Diaphragm Specification

Display
Analog

Sensor Type
Inbuilt Capsule Diaphragm

Grade
Industrial Grade

Seal Material
Buna-N or Neoprene

Bourdon Tube
Internal Brass Capsule

Thread
1/2 BSP Bottom

Outer Size
4 Inch Dial

Material
SS Casing with Internal Brass Components

Dial Material
Aluminium, White Background, Black Markings

Pointer Material
Aluminium, Black

Processing Type
Mechanical Gauge

Diameter
4 Inch (100 mm)

Glass Size
4 Inch

Mount Type
Bottom Connection

Scale Range
0-1600 mmWC

Accuracy
1.6% FSD

Finishing
Stainless Steel Casing Polished

Measure Pressure Of
Gases and Liquids (Non-corrosive to Brass)

Accessories
None Supplied

Application
Suitable for Low Pressure Measurement in HVAC, Automation, Process Industries

Movement
Brass

Protection Class
IP-65

Zero Adjustment
External

Working Temperature Range
-20C to +60C

Over Pressure Limit
130% of FSD

Case Material
Stainless Steel 304

Window Material
Clear Glass

About 4''DIAL0-1600 MMWC 1/2 BSP BOTTOM SS CASING INT BRASS Inbuilt Capsule Diaphragm

The specifications you provided describe a highly sensitive, low-pressure mechanical gauge specifically designed to accurately measure small amounts of pressure or vacuum (like air or gas drafts) using a built-in capsule element. Dial Size: 4 inches (100 mm) Pressure Range: 01600MMWC (Millimeters of Water Column) Process Connection: 1/2" BSP (British Standard Pipe), male or female depending on the specific model Connection Location: Bottom mounted Casing Material: Stainless Steel (SS) Measuring Element: Brass Sensing Diaphragm: Inbuilt Capsule Diaphragm (typically Phosphor Bronze or Beryllium Copper in standard brass internal

Stainless Steel Durability and Clarity

Crafted with high-quality Stainless Steel 304, this gauge ensures robust durability and corrosion resistance, making it optimal for challenging industrial environments. The 4-inch clear glass window, paired with a polished outer casing, provides optimal visibility and long-lasting performance. Its elegant finish ensures both professional appearance and resilience in operation.

Precision Low Pressure Measurement

Engineered with an inbuilt brass capsule diaphragm and an analog mechanical display, the gauge guarantees precise and accurate measurement of low pressures up to 1600 mmWC. Its scale and markings on a white aluminum dial improve readability, while its accuracy rating of 1.6% FSD and over pressure tolerance of 130% offer dependable safety and reliability in tasks demanding fine measurement.

Versatile Industrial Applications

Designed for seamless integration into HVAC systems, automation lines, and process industries, this gauge adapts easily to diverse installation needs. The bottom 1/2 BSP threaded connection simplifies mounting, and the external zero adjustment feature aids in field calibration. Its versatility ensures enhanced workflow across dealer, distributor, and service provider settings.

FAQ's of 4''DIAL0-1600 MMWC 1/2 BSP BOTTOM SS CASING INT BRASS Inbuilt Capsule Diaphragm:

Q: How do I install the 4DIAL0-1600 MMWC pressure gauge correctly?

A: To install, connect the gauge using its 1/2 BSP bottom thread to a compatible port, ensuring a secure and leak-free fit. The bottom connection makes it suitable for panel or direct mounting in pipelines measuring low pressures. Before installation, confirm that the medium is non-corrosive to brass components.

Q: What is the primary benefit of an inbuilt brass capsule diaphragm sensor?

A: The inbuilt brass capsule diaphragm provides high sensitivity for low pressure measurement and reliable response for non-corrosive gases and liquids, ensuring accuracy and stability, especially in HVAC and process industry applications.

Q: Where can this pressure gauge be used effectively?

A: This gauge excels in industrial environments such as HVAC systems, automation setups, and process industries, particularly where measurement of low pressure, durability, and precise analog indication are required.

Q: What is the recommended process for zero adjustment?

A: Zero adjustment can be performed externally, allowing users to recalibrate the pointer to zero without disassembling the gauge. This ensures ongoing measurement accuracy over time and after exposure to pressure fluctuations.

Q: When should I use this gauge instead of a digital pressure indicator?

A: Use this mechanical analog gauge when you need robust, maintenance-free performance, quick visual readings, and suitability for environments that do not require electronic devices, especially where conditions may challenge digital electronics.

Q: How does the IP-65 protection rating benefit my application?

A: With an IP-65 rating, the gauge is protected against dust ingress and low-pressure water jets, making it ideal for challenging industrial or outdoor settings that require reliable, uninterrupted operation.
